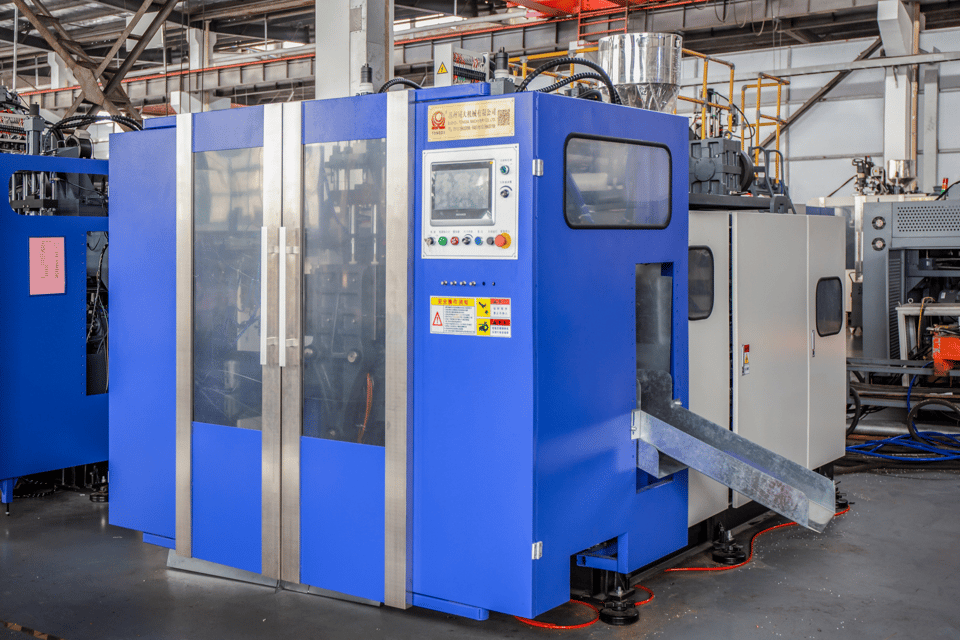

HTll-2L
1、 The machine has high stability (stable product weight).
2、This model has been in use for 20 years, with mature technology and high controllability.
3、Hydraulic system upgrade, small pump with independent mold locking, reduced oil pump energy consumption
4、Low price, suitable for economical use





Downloads
1. Our classic type machine, running stable, and easy operate.
2. Cost effective .
3. Wide application, can produce different products such as small sea ball toys, child toy bowling bottles & balls, dumbbel, also up to 1L round bottles, etc.
4. For sea ball production, in order to improve the output to improve production effciency for customers, we designed extra scraps cooling device to speed up the cooling of scraps .
5. We upgraded the configuration of power source for hydraulic movements and parison controller. Before we equip one big oil tank for hydraulic movements, and a small oil tank for parison controller, and need 2 motors. Now we use one big oil tank for whole power source, use an energy accumulator to save the energy for the parison controller to replace of a small oil tank and motor, not only save space, and save power energy. Also if the power supply is not stable in customer’s factory, the energy accumulator can protect the parison controller not be damaged because of suddenly power shut off.
6. What we’re always doing updating on the design of the machines to make it much convenient for customers operate. In order to let customers collect finished products and scraps more convenient. So adjusted the design to separate collect the products and the scraps for easy collection, to save labor time for separate the finished product and scraps.
| MODEL | Units | HTll-2L |
| Max. Product volume | L | 2 |
| Output of HDPE | kg/h | 60 |
| Clamping force | kn | 44 |
| Screw diametre | mm | 60 |
| Screw heating power | kw | 11.5 |
| Blow pressure | mpa | 0.6 |
| Size of machine | m | 3.3*2.2*2.6 |
