HTll-18L
HTll-18L

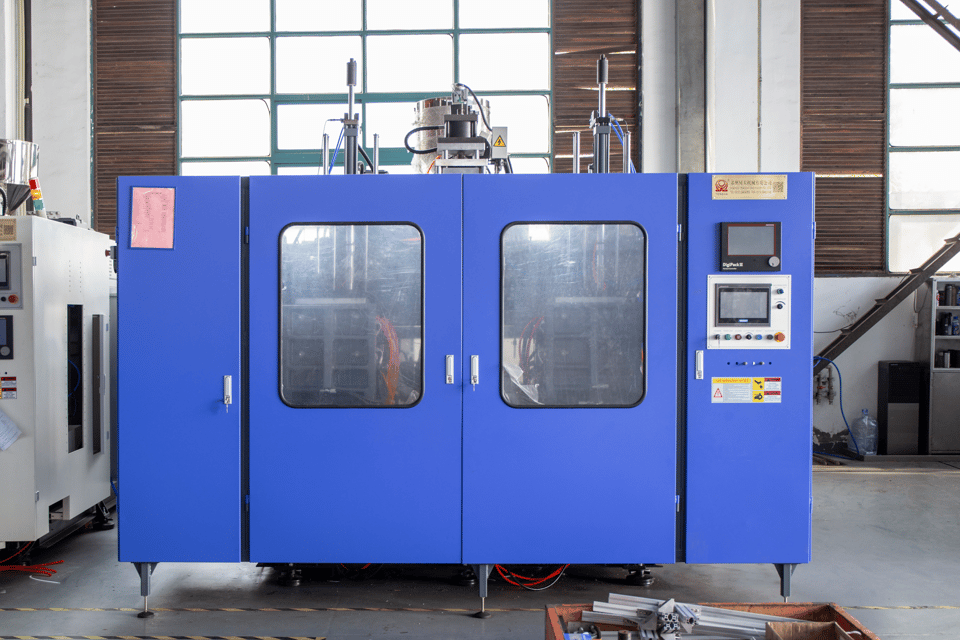

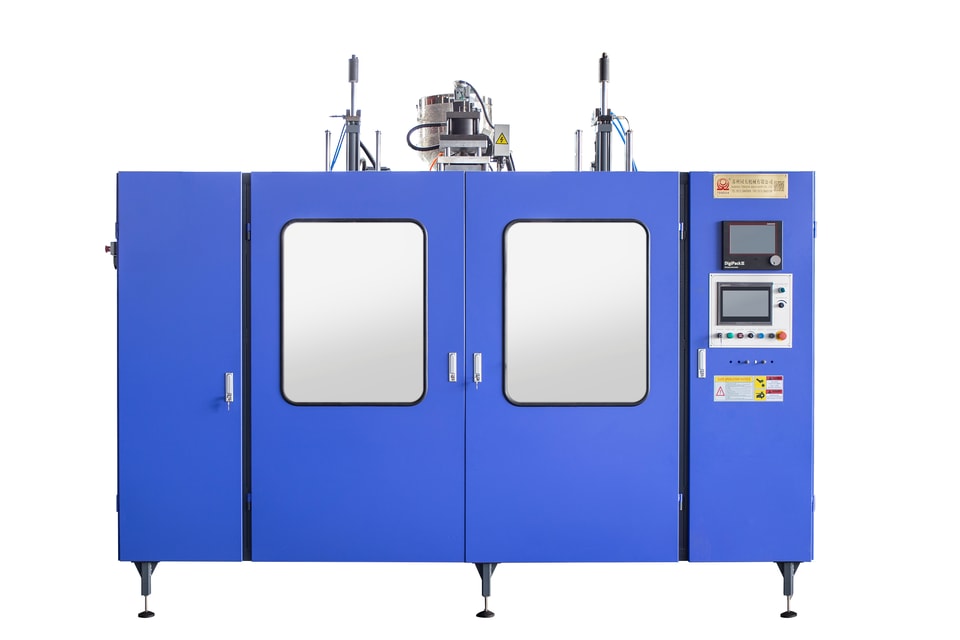

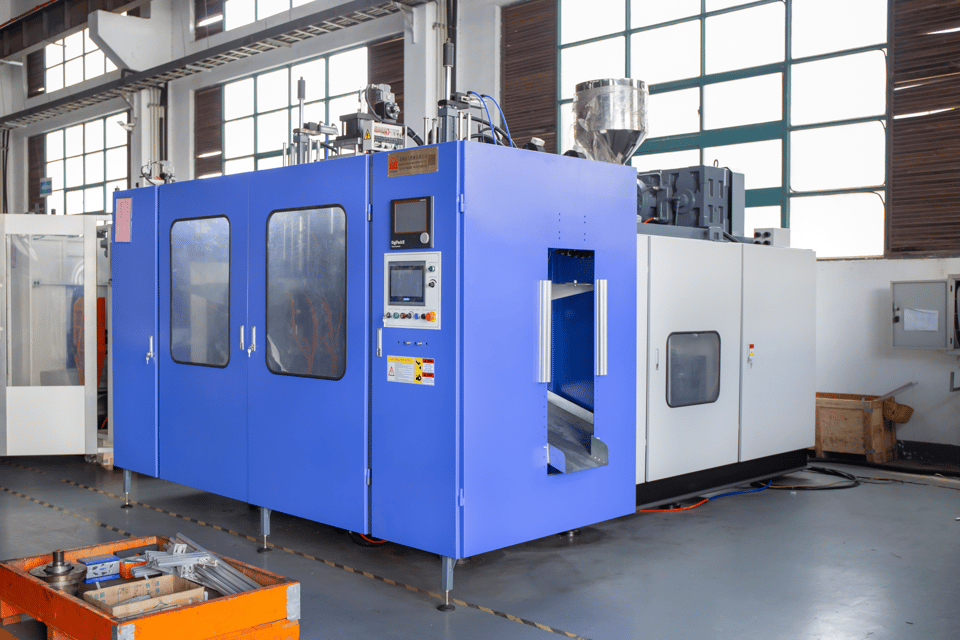

This is double station.This is suitable for making the stacking product,5 gallons PE water bottle,etc.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.
Advantage
The HT series models from Suzhou Tongda Machinery are entry-level machines integrating high speed and full automation. This model is equipped with automatic flash trimming and flash collection functions on blow molding molds to realize automated production and cut labor costs.
Other specific features are listed below:
- The die head is made of 38CrMoAl steel with nitriding treatment inside. It features smooth curved flow channels without dead zones and carbon accumulation.
- The electric control system adopts a Mitsubishi microcomputer PLC control system from Japan for faster operation. It is fitted with a large-size color touchscreen integrating the wall thickness controller, enabling more convenient parameter adjustment.
- As the second-generation automated product of Suzhou Tongda, the HT series delivers stable performance at an affordable price. Having passed years of market verification, it boasts outstanding cost performance.

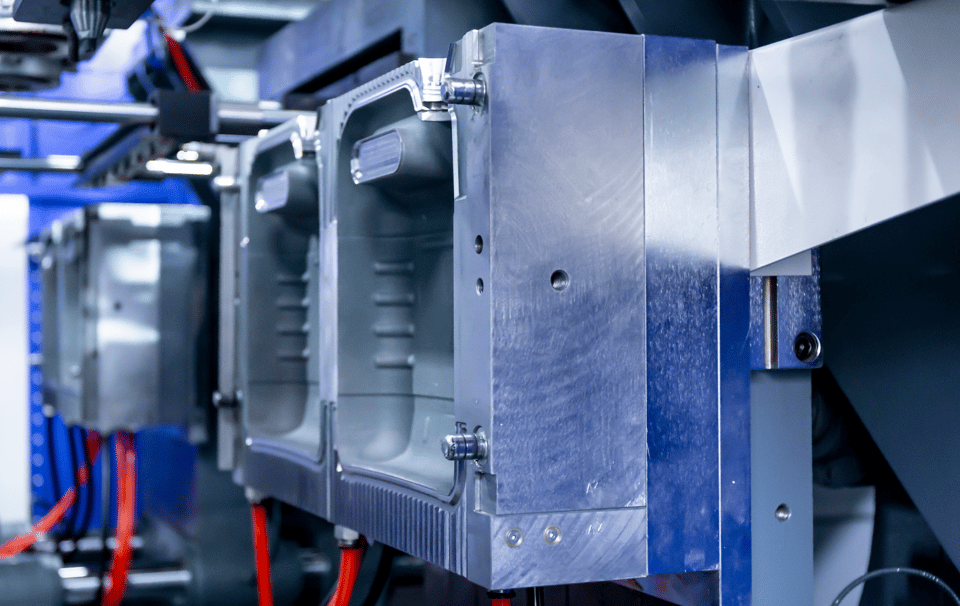

- Built-in mold flash trimming reduces labor costs and enables fully automatic production.
Parameters
| MODEL | Units | HTll-18L |
| Max. Product volume | L | 18 |
| Output of HDPE | kg/h | 130 |
| Clamping force | kn | 158 |
| Screw diametre | mm | 90 |
| Screw heating power | kw | 17.4 |
| Blow pressure | mpa | 0.6 |
| Size of machine | m | 4.8*3.4*3.2 |
