HSll-12L
HSll-12L

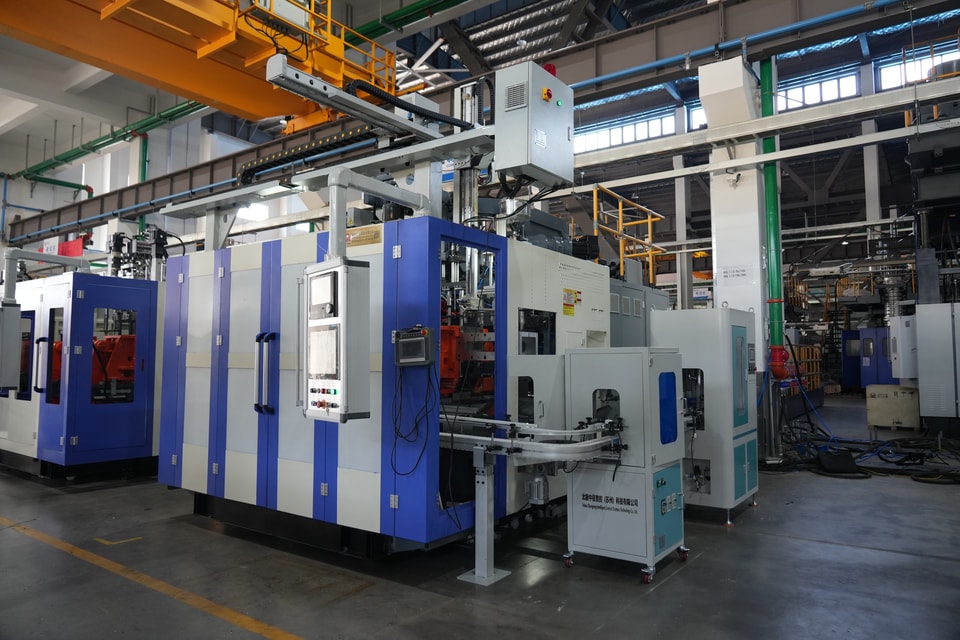

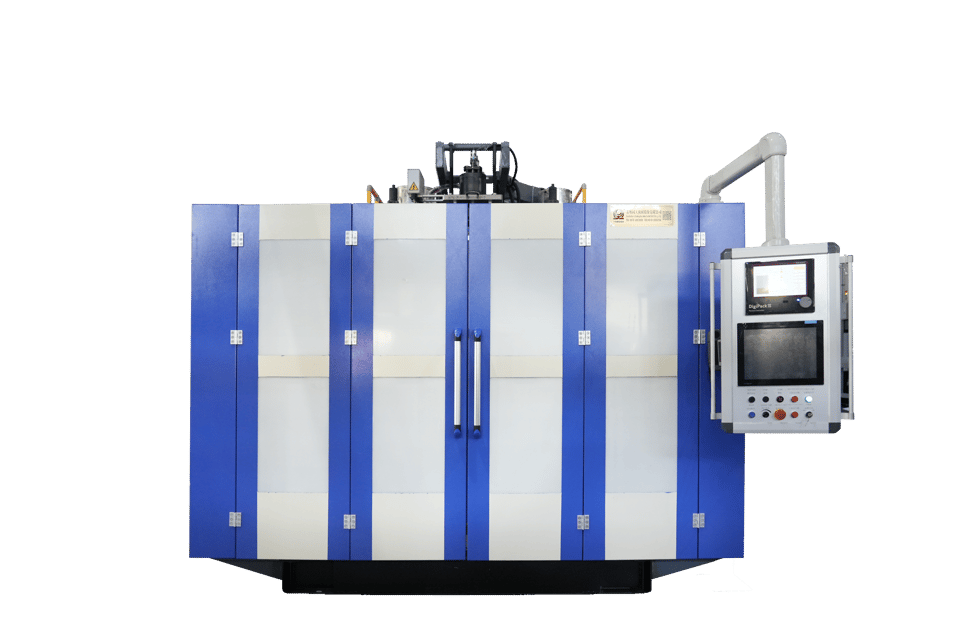

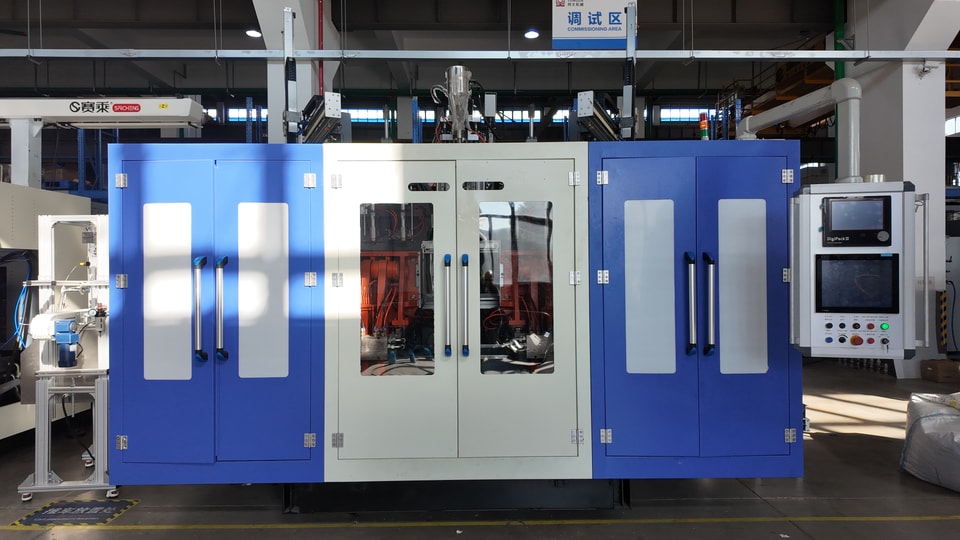

1. HSII-12L model machine is our high level series extrusion blow molding machine. It is double station, with servo motor for hydraulic system to save energy.

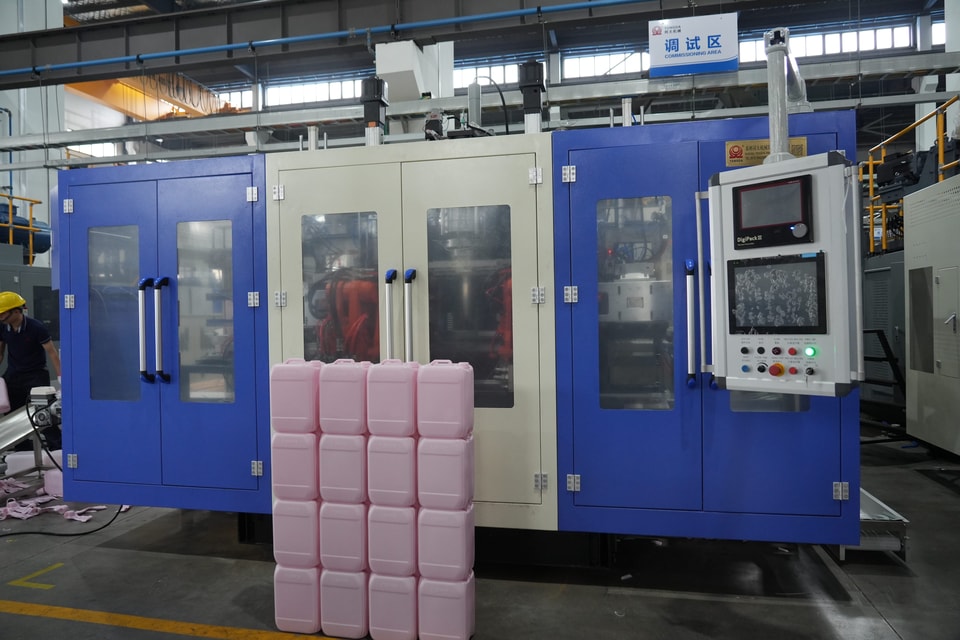

2. Now equipped with double die head, producing the 4L lube oil jerry can, with double die head, can produce max 5L HDPE jerry cans, if equipped with single die head, is suitable to produce max 12L HDPE jerry cans.
3. To meet customers’ different requirement, also can be equipped with triple die head, four die head, six die head, and can also equip multi layers, liquid level line screw.
If equipped with robot arms or 3Dimensional robot arms, conveyors, leak tester, IML in mold labeling machine, the automation will be upgraded.
HS Series Fully Automatic Extrusion Blow Molding Machine

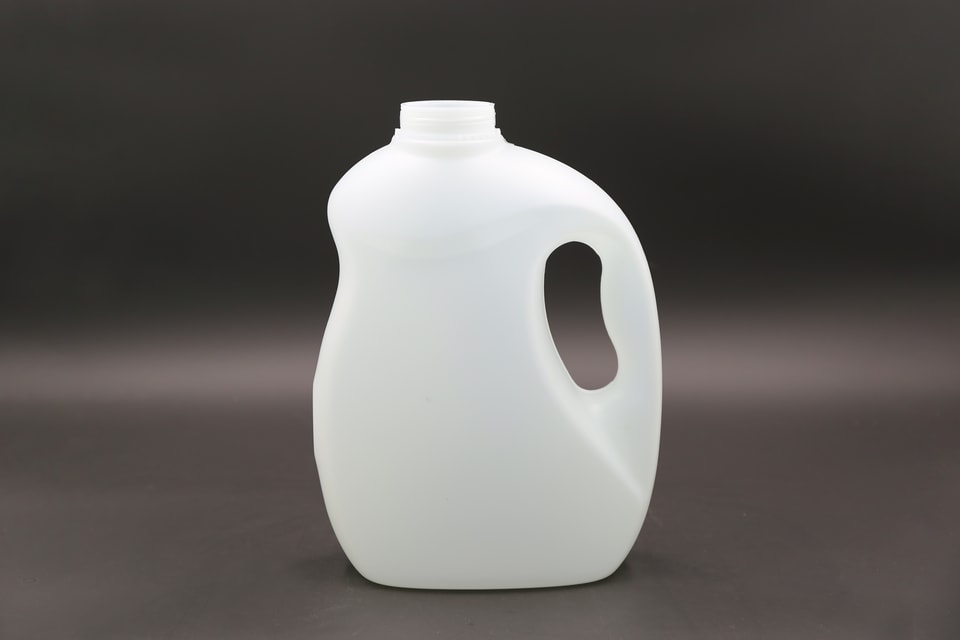

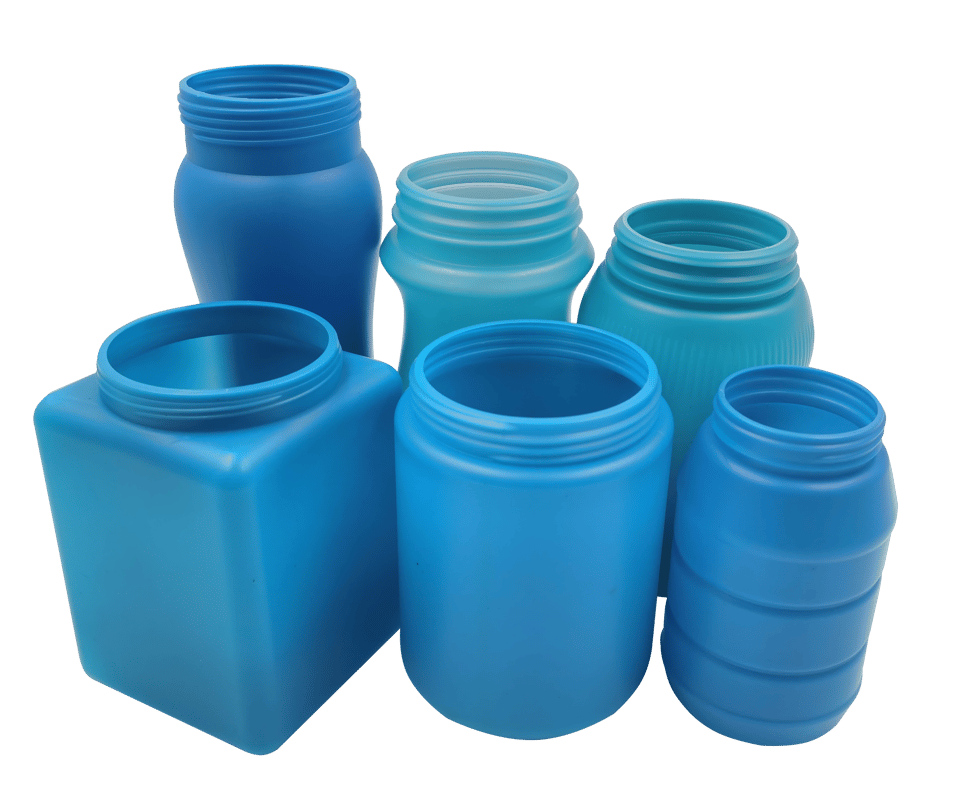

10mL–30L for personal care, chemical, medical, food and other plastic hollow products.
1.High Precision
Proportional valve mold moving control with electronic scale for high-precision positioning.
2.High Efficiency

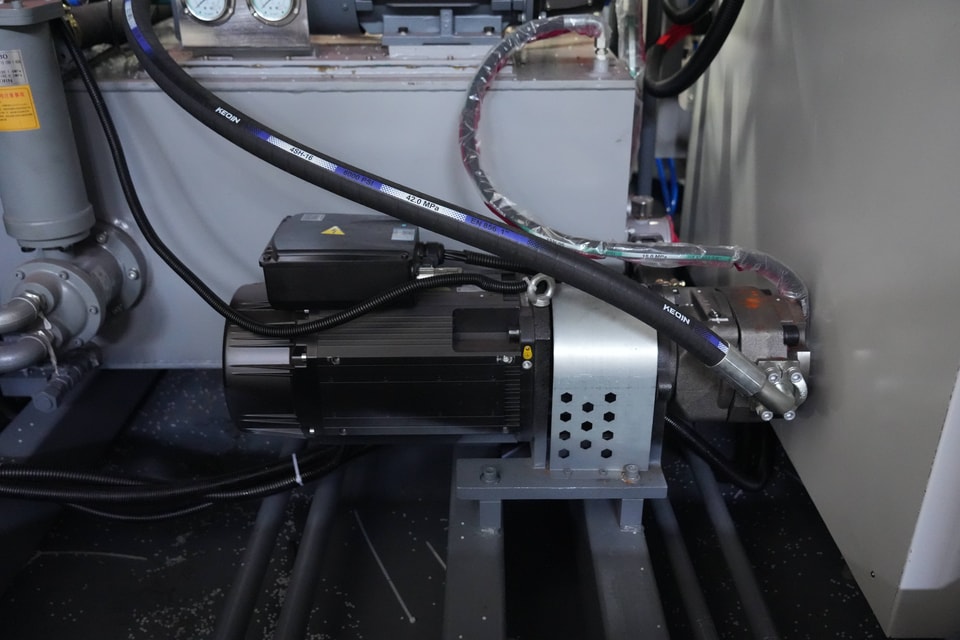

Adopt hydraulic servo pump, delivers 10% energy savings and a 10-15% output boost over peer equipment.
3.Premium Quality

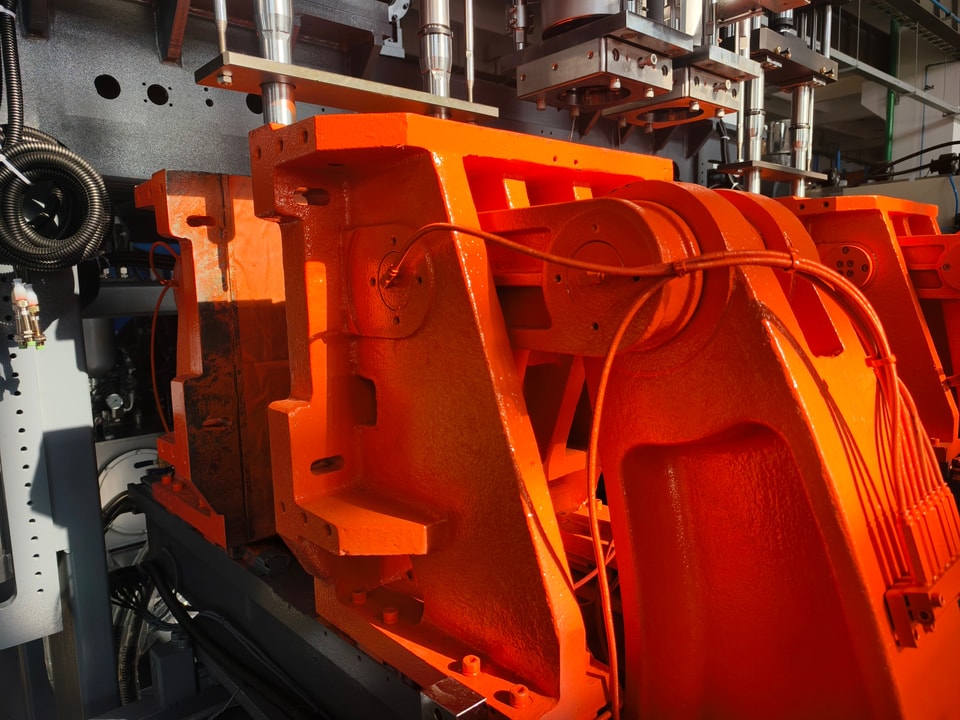

Multi-point clamping ensures even force distribution and smooth joint line.

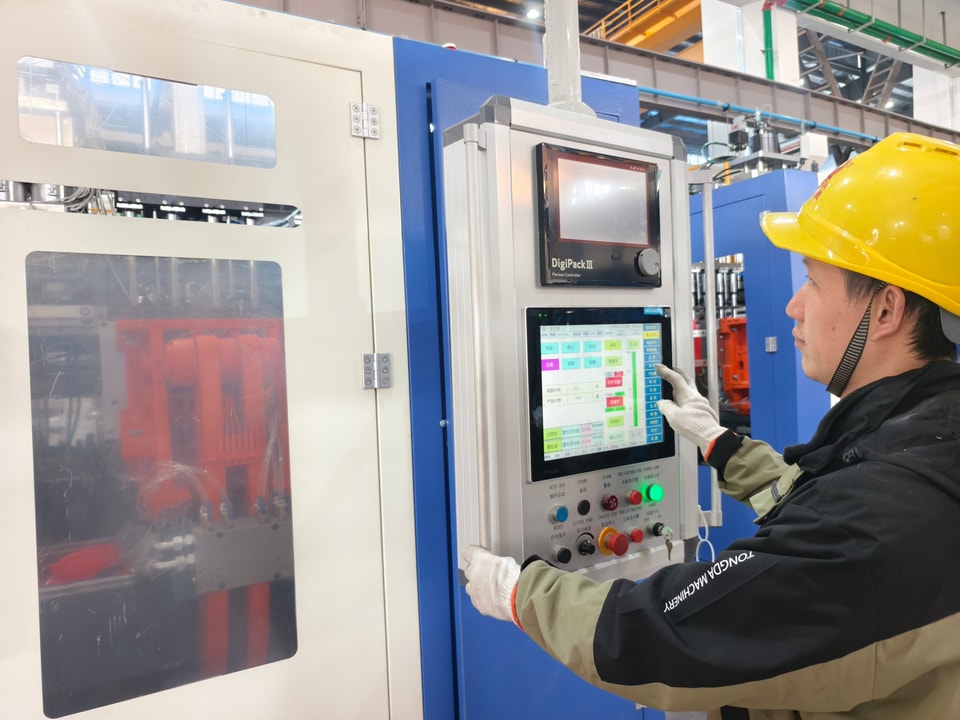

4.High-level Automation
Built-in deflashing system, secondary cooling, and automatic recycling for streamlined automation.
| MODEL | Units | HSII-12L |
| Max. Product volume | L | 12 |
| Output of HDPE | kg/h | 160 |
| Clamping force | kn | 220 |
| Screw diametre | mm | 100 |
| Screw heating power | kw | 21 |
| Blow pressure | mpa | 0.6 |
| Size of machine | m | 5.5*3.1*3.4 |
