HSII-5L
1、Suitable for the production of 3-5L plastic hollow products.
2、Continuous extrusion die head with high output extrusion system,mold moving proportional servo control system.
3、Standard Hydraulic servo control system.
4、Liquid Level Line extrusion system option.








Downloads

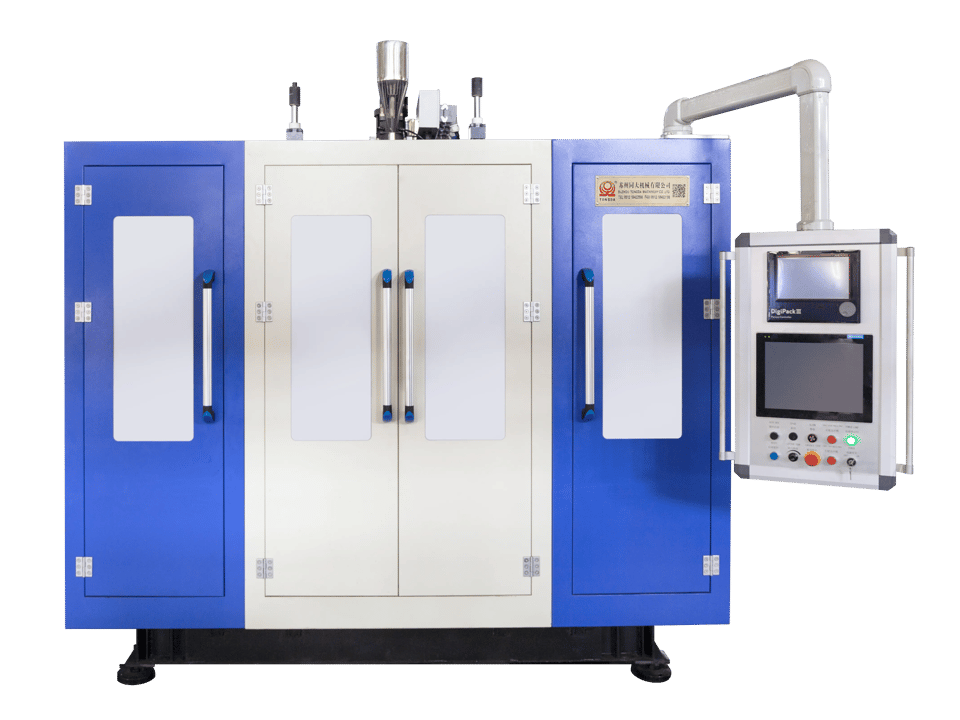

HS Series Fully Automatic Extrusion Blow Molding Machine
10mL–30L for personal care, chemical, medical, food and other plastic hollow products.
1.High Precision
Proportional valve mold moving control with electronic scale for high-precision positioning.
2.High Efficiency
Adopt hydraulic servo pump, delivers 10% energy savings and a 10-15% output boost over peer equipment.
3.Premium Quality

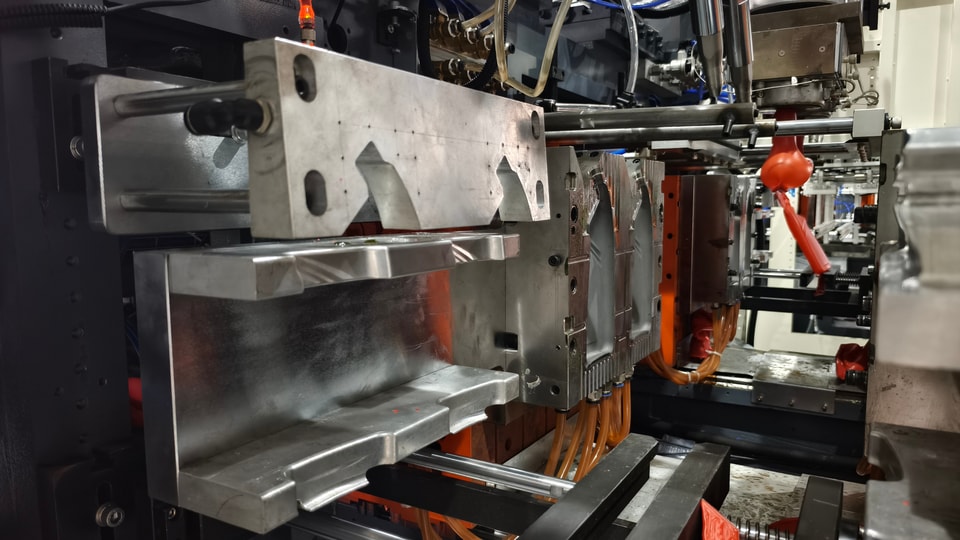

Multi-point clamping ensures even force distribution and smooth joint line.
4.High-level Automation

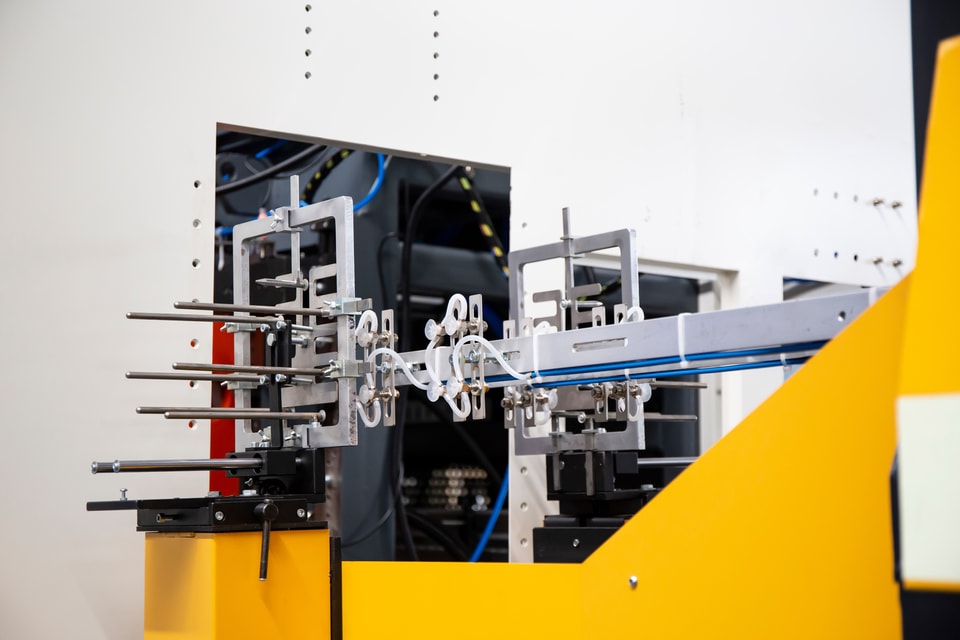

Built-in deflashing system, secondary cooling, and automatic recycling for streamlined automation.
| MODEL | Units | HSII-5L |
| Max. Product volume | L | 5 |
| Output of HDPE | kg/h | 110 |
| Clamping force | kn | 158 |
| Screw diametre | mm | 80 |
| Screw heating power | kw | 19 |
| Blow pressure | mpa | 0.6 |
| Size of machine | m | 5.2*2.7*3.3 |
