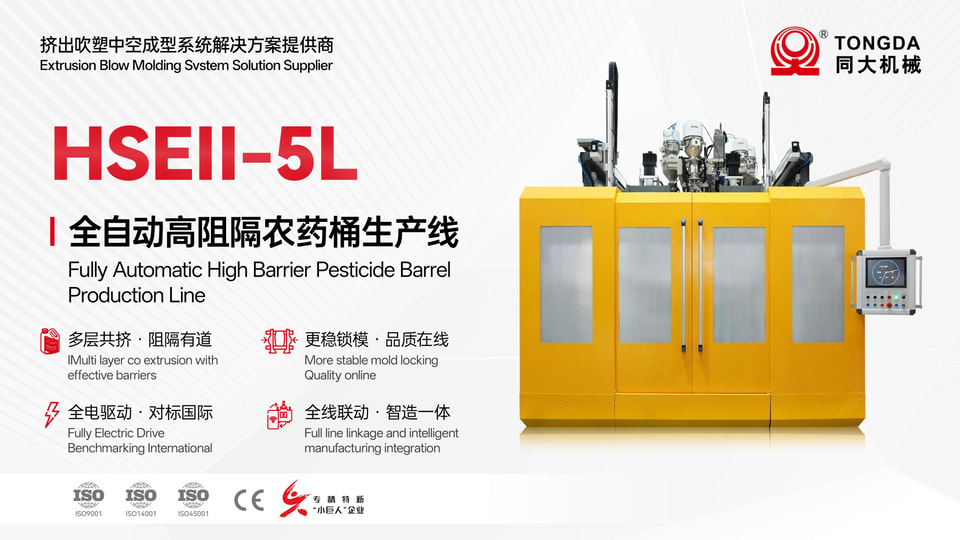

HSEll-5L

1.Multi-layer co-extrusion, high barrier properties

Four-screw co-extrusion structure

Screw specifications: 50mm, 80mm, 40mm, 40mm

It can simultaneously extrude new material, color masterbatch, adhesive, and EVOH.

The adhesive and EVOH are each equipped with independent 40mm twin-screw extruders.

Ensure uniform plasticization of high-barrier materials.

2.More Stable Clamping ，Consistent Quality

Toggle-style central mold clamping structure

158 kN high clamping force output

Smooth clamping and uniform force distribution

Precise bottle dimensions and consistent product quality.

Compatible with various molds, allowing for quick mold changes.

3.All-electric drive · Benchmarking against international standards

The entire machine is fully electric-driven

Responsive, energy-saving and consumption-reducing.

Equipped with a 100-point wall thickness control system

Precise control over material usage per cycle

Core components from top international brands


Siemens low-voltage electrical components, BEDE motors, and Festo pneumatic components

The entire machine meets European export standards

Standard equipped with three-color indicator lights, remote control, and an aviation plug junction box

Electrical cabinet air conditioner and hopper magnetic stand, ensuring stability and easy maintenance

4.Full-line integration ，Smart manufacturing in one system

Integrated with a full set of automated auxiliary equipment

Automatic feeding, deflashing, and 3-axis robot

In-mold labeling, automatic weighing, and leak testing equipment

Equipped with a fully automatic scrap recycling system

Unmanned production from raw material to finished product

Reduces labor, improves yield rate and production line efficiency
