HSE-5L
HSE-5L
1、15 inch touch screen, which can monitor the host and each auxiliary machine.
2、Modbus/TcP communication is adopted to make the main and auxiliary machines interconnected.
3、The servo wall thickness control system is integrated.
4、 It has the function of Internet of Things, enabling the cloud to view the machine production status.

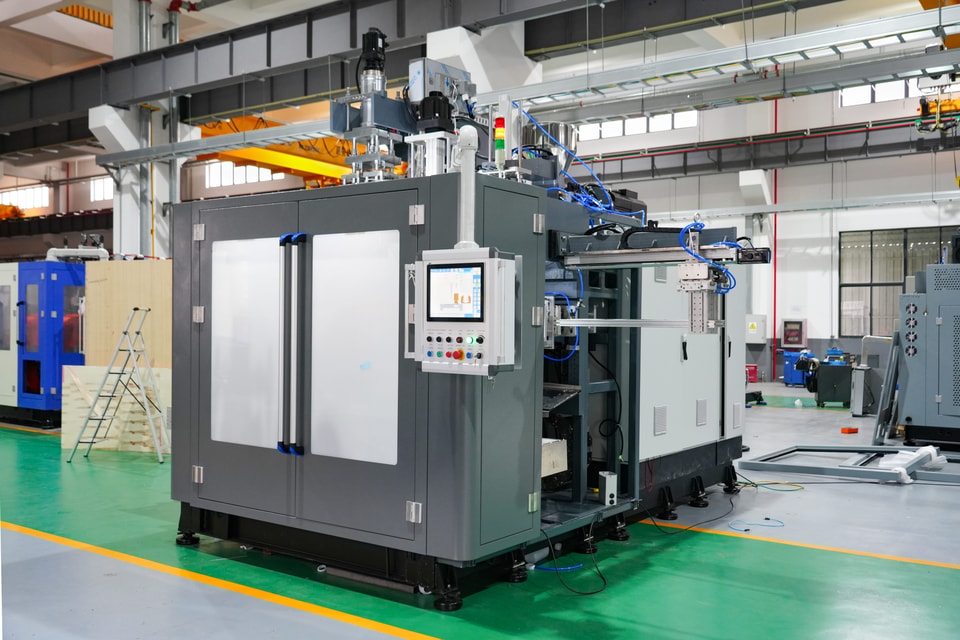

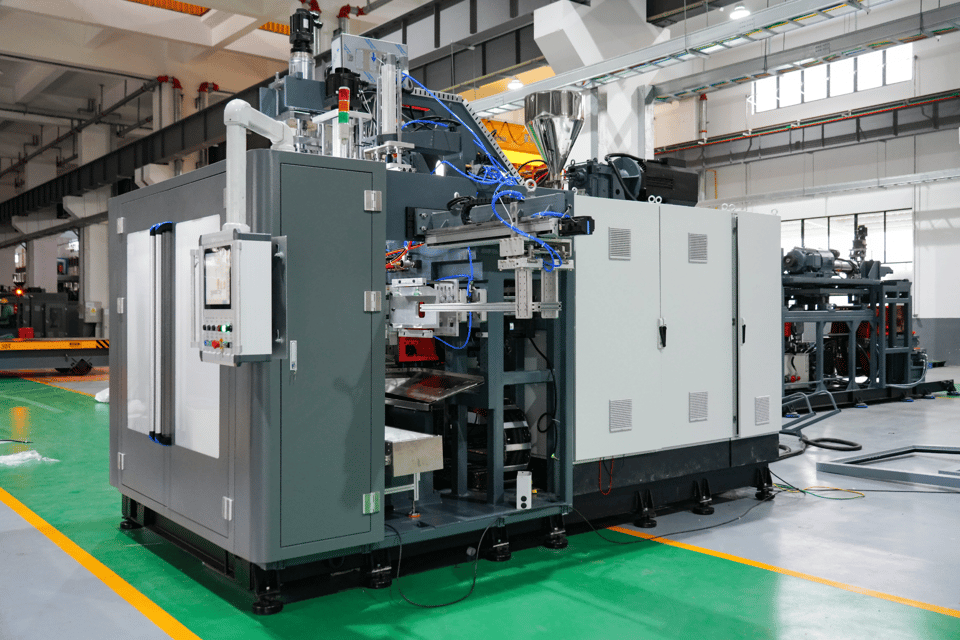

HSE Series Fully Electric Extrusion Blow Molding Machine
10mL–50L for medical, food, wet electronics chemical and other plastic hollow products.
1.High Cleanliness
Hydraulic-Free, Zero Oil Contamination. Top Choice for Clean Rooms.
2.Energy Efficiency
Energy savings: 30%-50%, Production increase: 10%-15%.
3.Intelligent Control
Remote maintenance, production data storage, and enhanced management efficiency.
| MODEL | Units | HSE-5L |
| Max. Product volume | L | 5 |
| Output of HDPE | kg/h | 85 |
| Clamping force | kn | 158 |
| Screw diametre | mm | 70 |
| Screw heating power | kw | 13.2 |
| Blow pressure | mpa | ≥0.8 |
| Size of machine | m | 4.6*2.6*3.5 |
