TDBX-1500A
TDBX-1500A

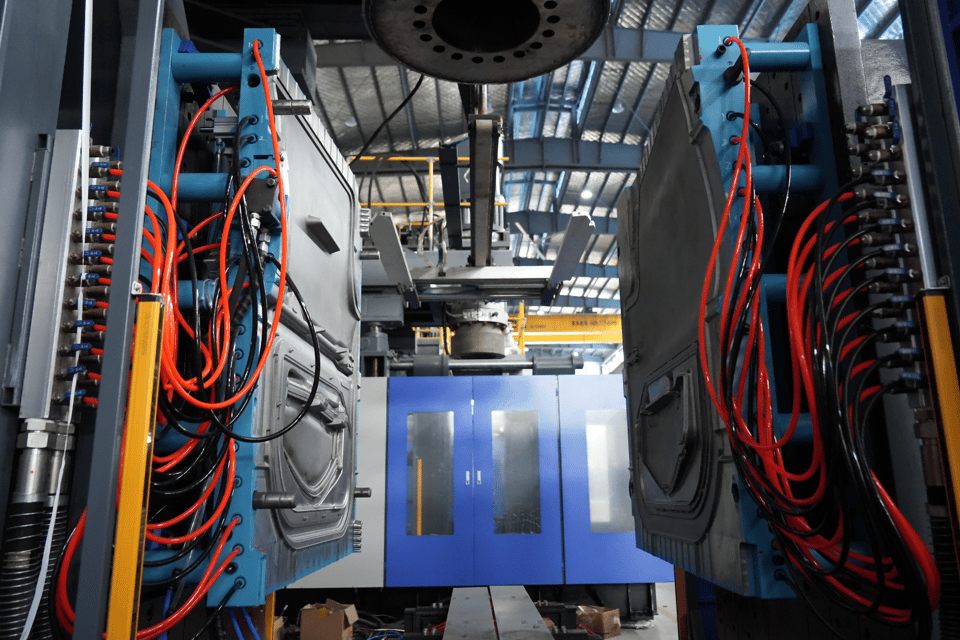

1.High-Speed Molding The three-plate, two-tie-bar, toggle-type clamping system delivers a well-centered and evenly distributed clamping force.
2.Energy Efficient The servo-driven hydraulic system provides the ideal combination of precision motion and energy efficiency.
3.Intuitive Operation MOOG wall-thickness control 3.0 ensures uniform distribution & intuitive operation.
| MODEL | Units | TDBX-1500A |
| Max. Product volume | L | 1500 |
| Output of HDPE | kg/h | 450 |
| Clamping force | kn | 1200 |
| Screw diametre | mm | 135 |
| Screw heating power | kw | 40 |
| Screw Motor Power | kw | 160 |
| Size of machine | m | 8.6*3.3*7 |

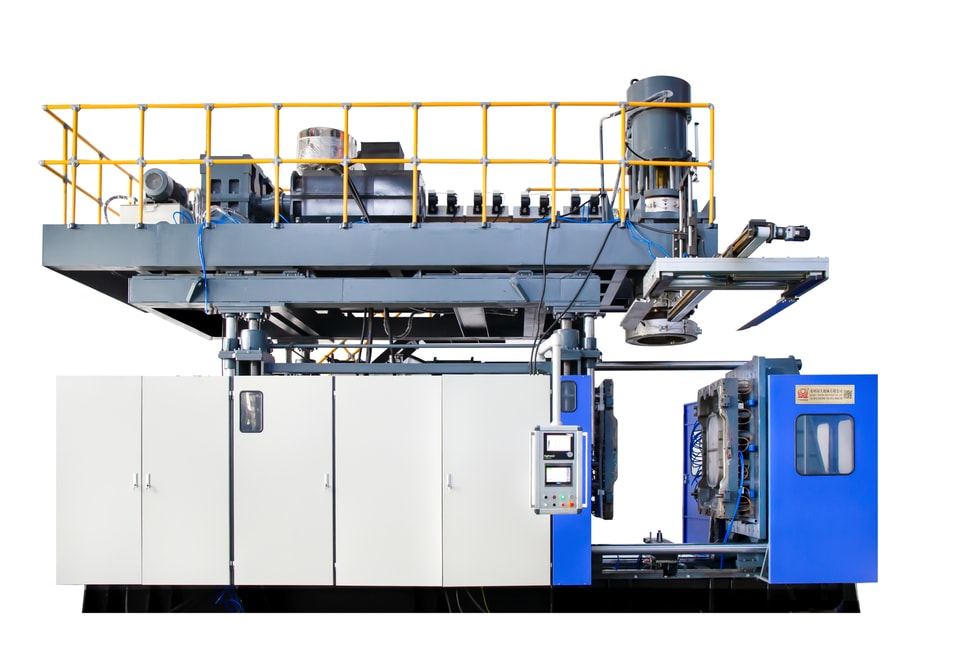

TDBX Series Large-Scale Panel Blow Molding Machines

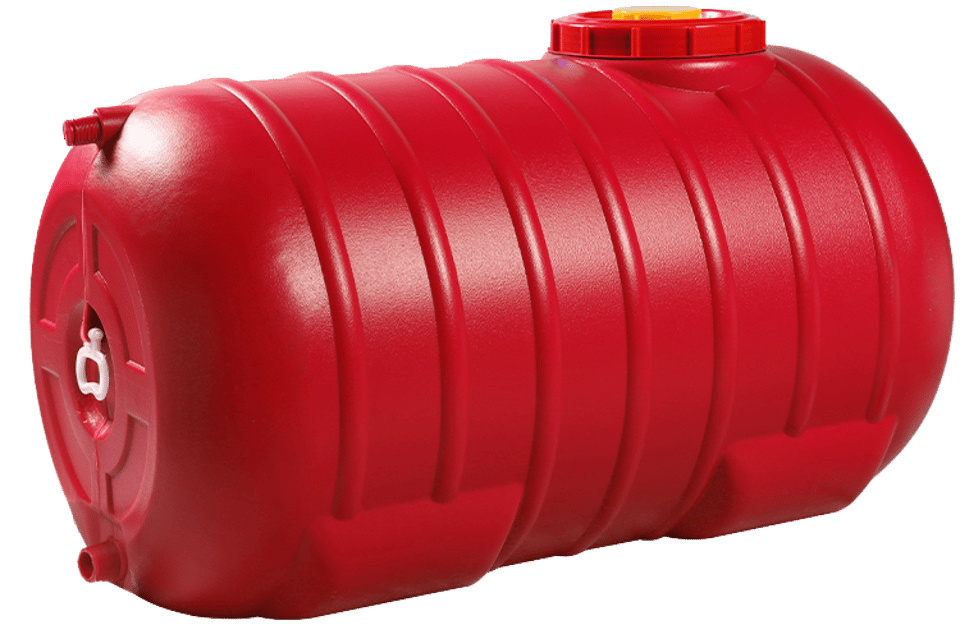

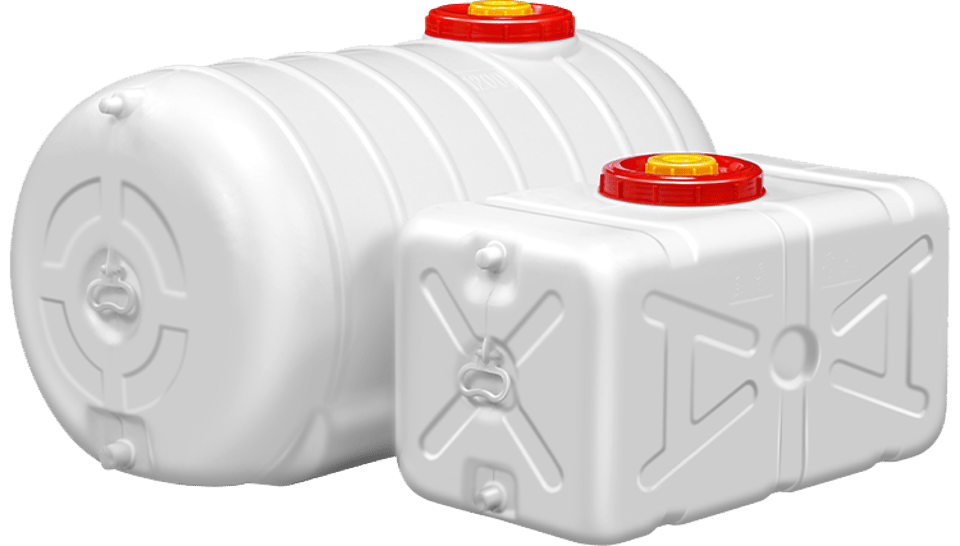

1000L-2000L panel-type hollow products: Water-filled barriers, floats, pallets and more
1.High-Speed Molding
The three-plate, two-tie-bar, toggle-type clamping system delivers a well-centered and evenly distributed clamping force.
2.Energy Efficient
The servo-driven hydraulic system provides the ideal combination of precision motion and energy efficiency.
3.Intuitive Operation
MOOG wall-thickness control 3.0 ensures uniform distribution & intuitive operation.
