TDB-250F
TDB-250F
1 、It is applicable to the production of 160-250L chemical barrels, double L-ring chemical packaging barrels, etc.
2、Adopt high-yield extrusion system and continuous die.
3、Optional hydraulic servo control system.
4、The whole frame is processed by a large gantry five-sided machining center at one time, and the assembly precision of the components is higher

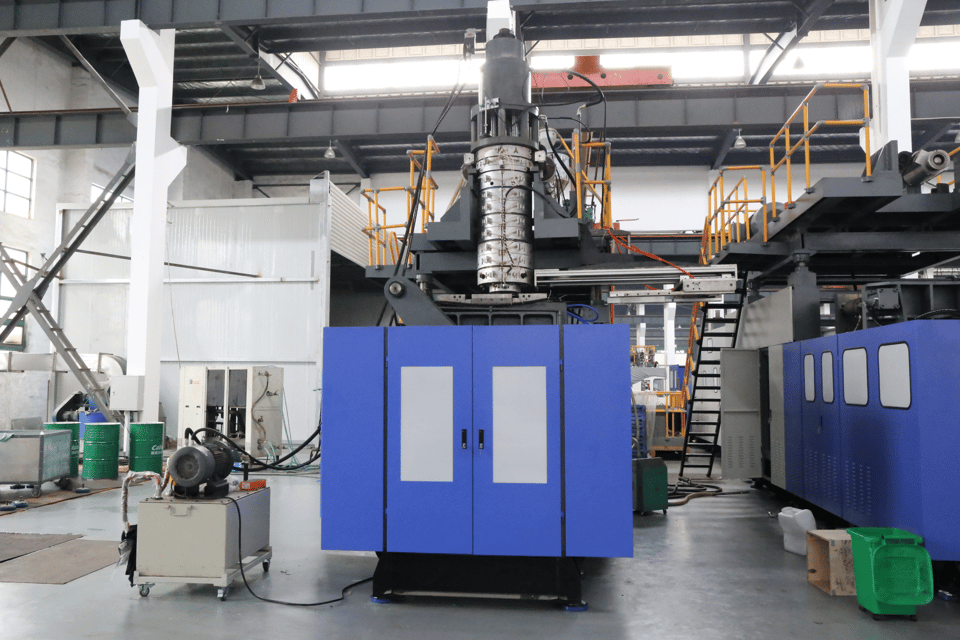

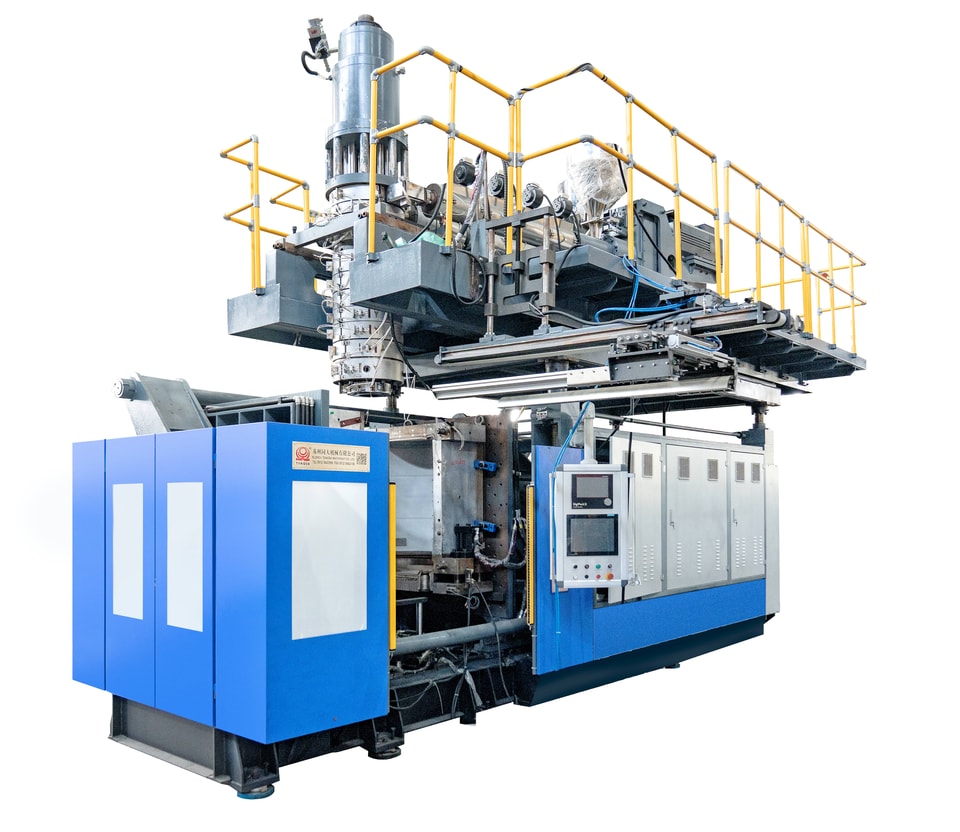

TDB Series Accumulator Extrusion Blow Molding Machine
10L–3000L for chemical drums, cases, school furniture, household furniture, toys, auto parts and other plastic products.
1.Energy Saving
The servo-driven hydraulic system reduces energy use by 10-25% and ensures easy operation.
2.Stable
With over 4,000 units produced, this model features mature technology and stable operation.
3.Wide Applicability
Quick production launch, suitable for more industries production.
| MODEL | Units | TDB-250F |
| Max. Product volume | L | 250 |
| Output of HDPE | kg/h | 360 |
| Clamping force | kn | 740 |
| Screw diametre | mm | 120 |
| Screw heating power | kw | 38 |
| Blow pressure | mpa | 0.6 |
| Size of machine | m | 8.2*3.2*5.5 |
