HTSII-12L
HTSII-12L
1、The maximum mold size for this model is 440*420 (mm, W*H).
2、Suitable for the production of 3-5L plastic hollow products.
3、Applicable Industries: Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Manufacturing Plant, Restaurant, Food & Beverage Factory, Farms.
| MODEL | Units | HTSⅡ-12L |
| Max. Product volume | L | 12 |
| Output of HDPE | kg/h | 130 |
| Clamping force | kn | 158 |
| Screw diametre | mm | 90 |
| Screw heating power | kw | 17.4 |
| Blow pressure | mpa | 0.6 |
| Size of machine | m | 4.3×3.0×3.2 |

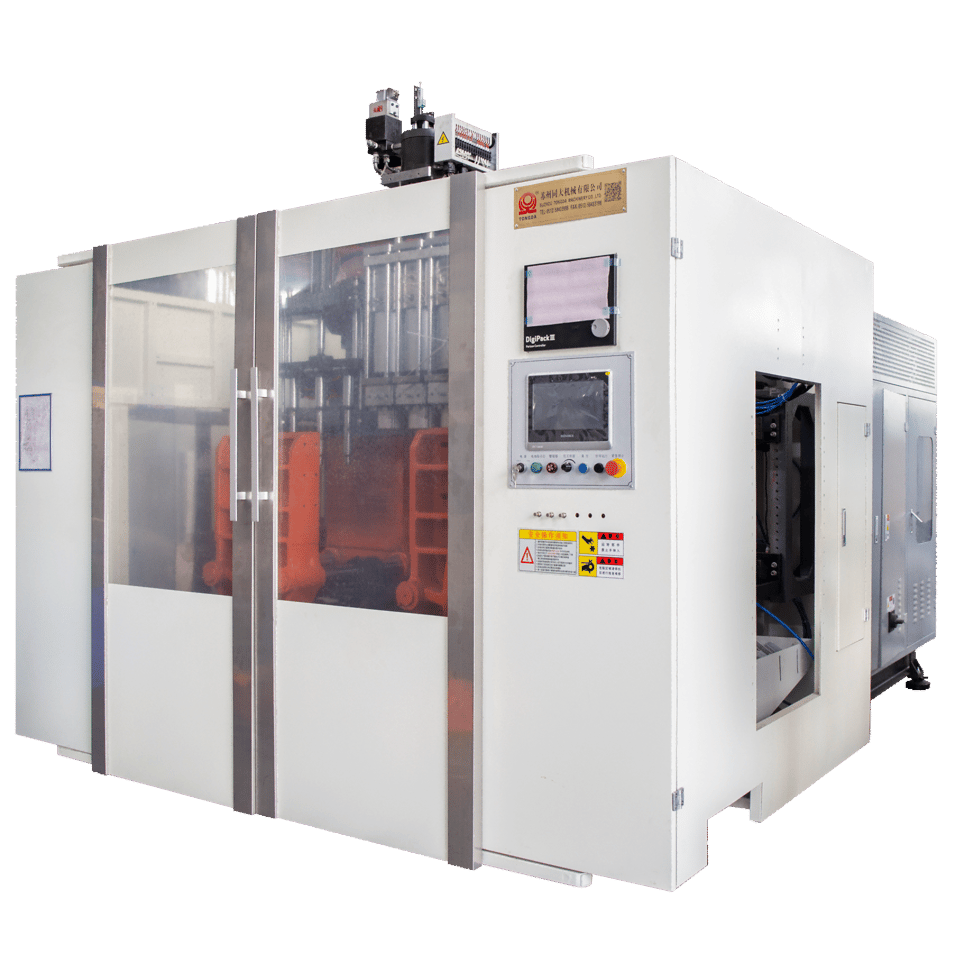

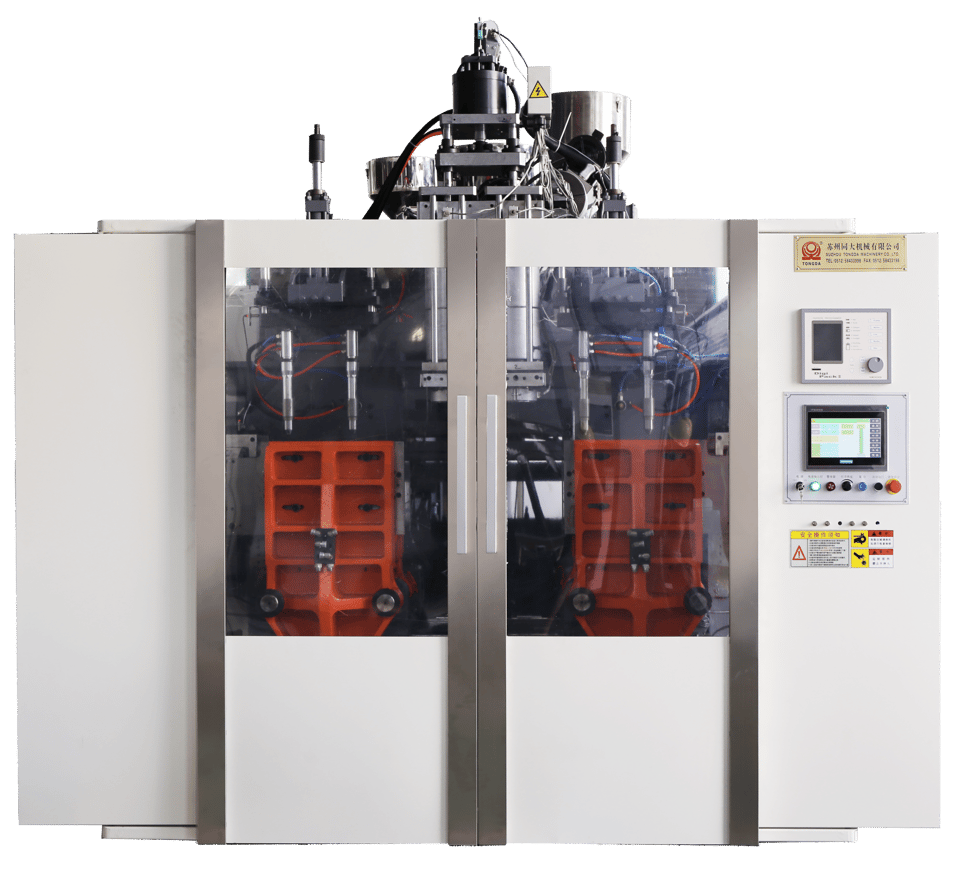

HTS Series Fully Automatic Extrusion Blow Molding Machine
10mL–20L for personal care, chemical and other plastic hollow products.
1.Exceptional Stability
Five-axis gantry machining provides a true mounting base for lasting stability.
2.High Automation Level
The frame-mounted deflashing unit is compact and highly reliable.
3.Wide Applicability
Rotating blow pin rack handles both straight and angled neck needs.
